Handle-It® Heavy Duty Warehouse Guard Rail Column
Handle-It Heavy Duty Guard Rail Column, designed to be used with Handle-It guard rail systems. Used as Safety Barriers and Forklift Guardrails. Quick ship stock in Milwaukee, WI warehouse. Available in single or double rail configuration. Includes cap and hardware.
*Ships out of WI
are sold separately.
are sold separately
Features and Benefits
- Tested to withstand 10,000 lbs. at 4 mph
- Powder-coated Handle-It yellow, yields high visibility in a durable finish

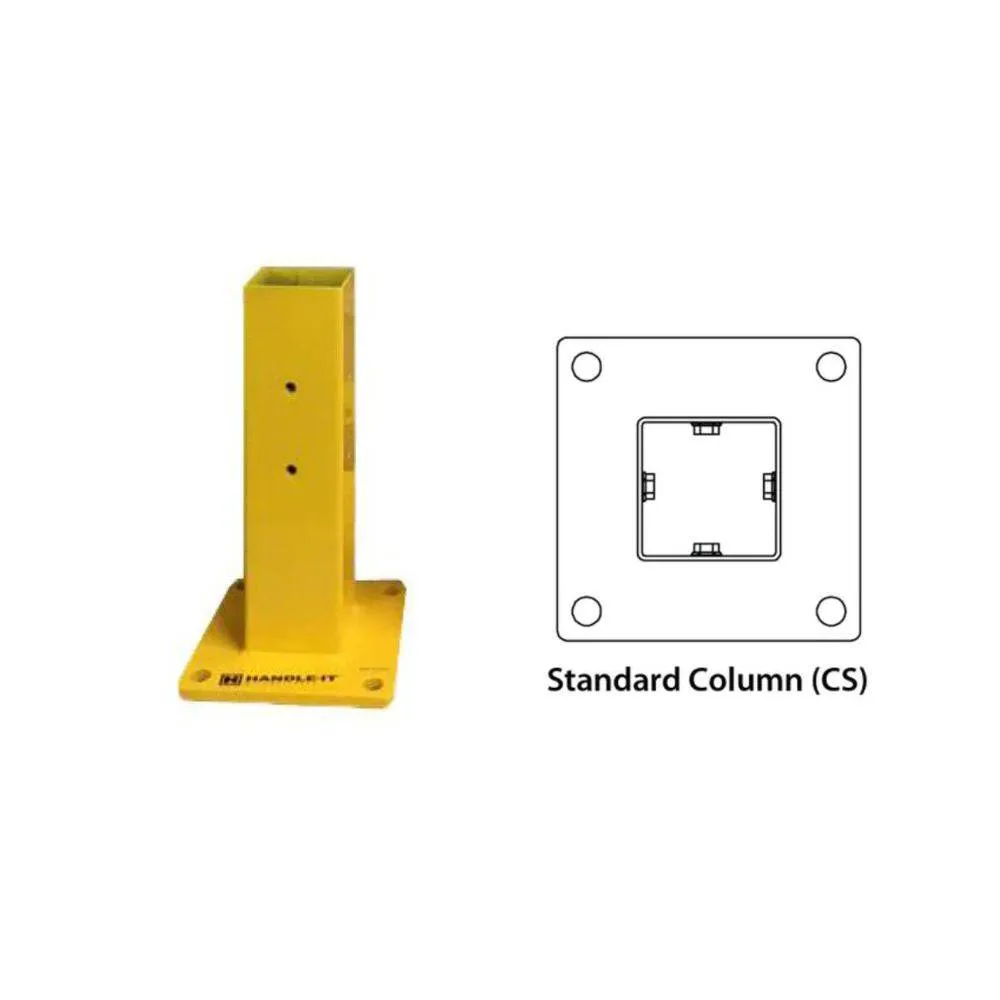

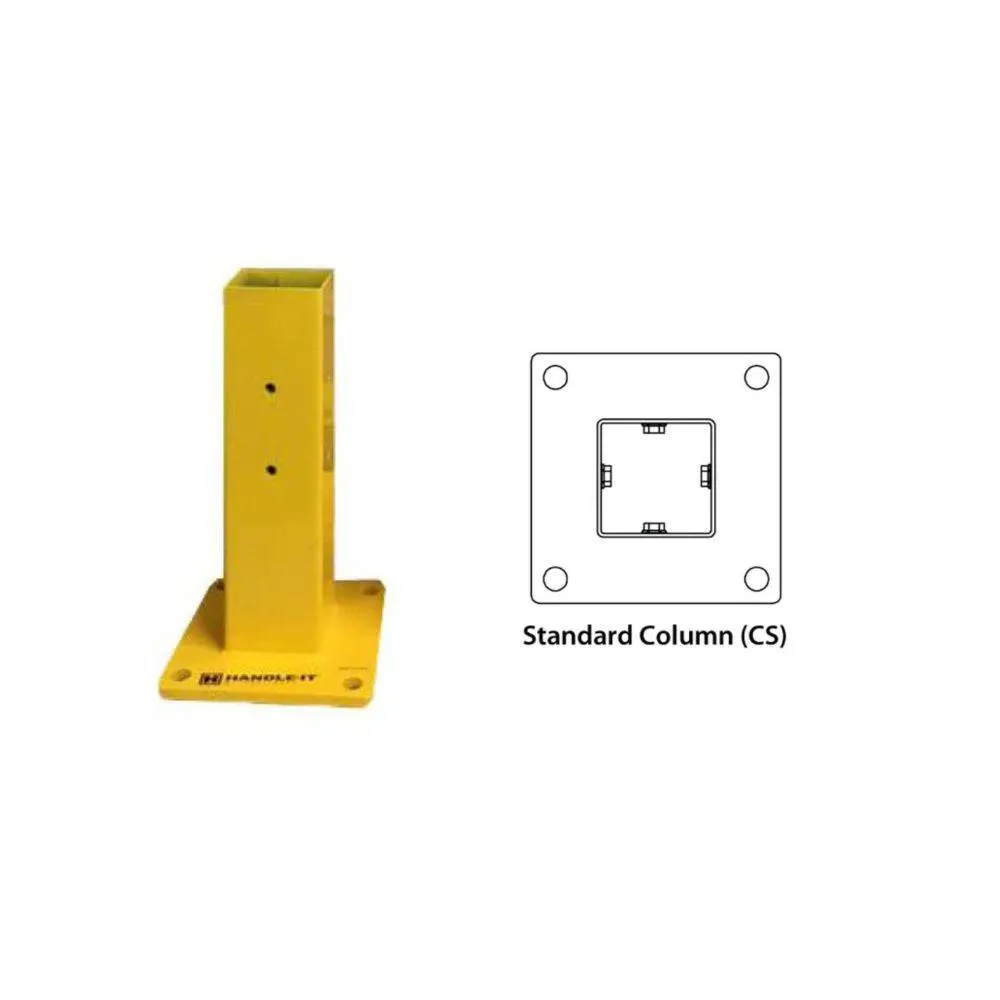

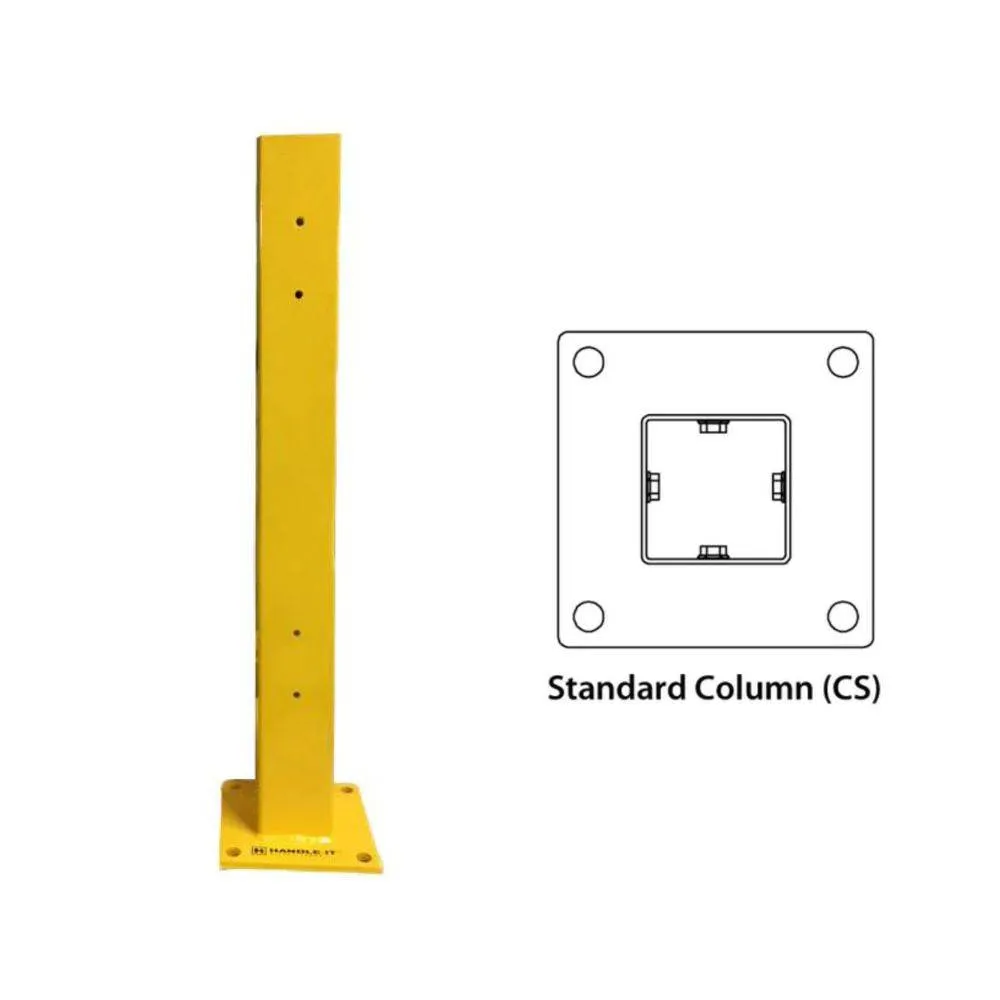

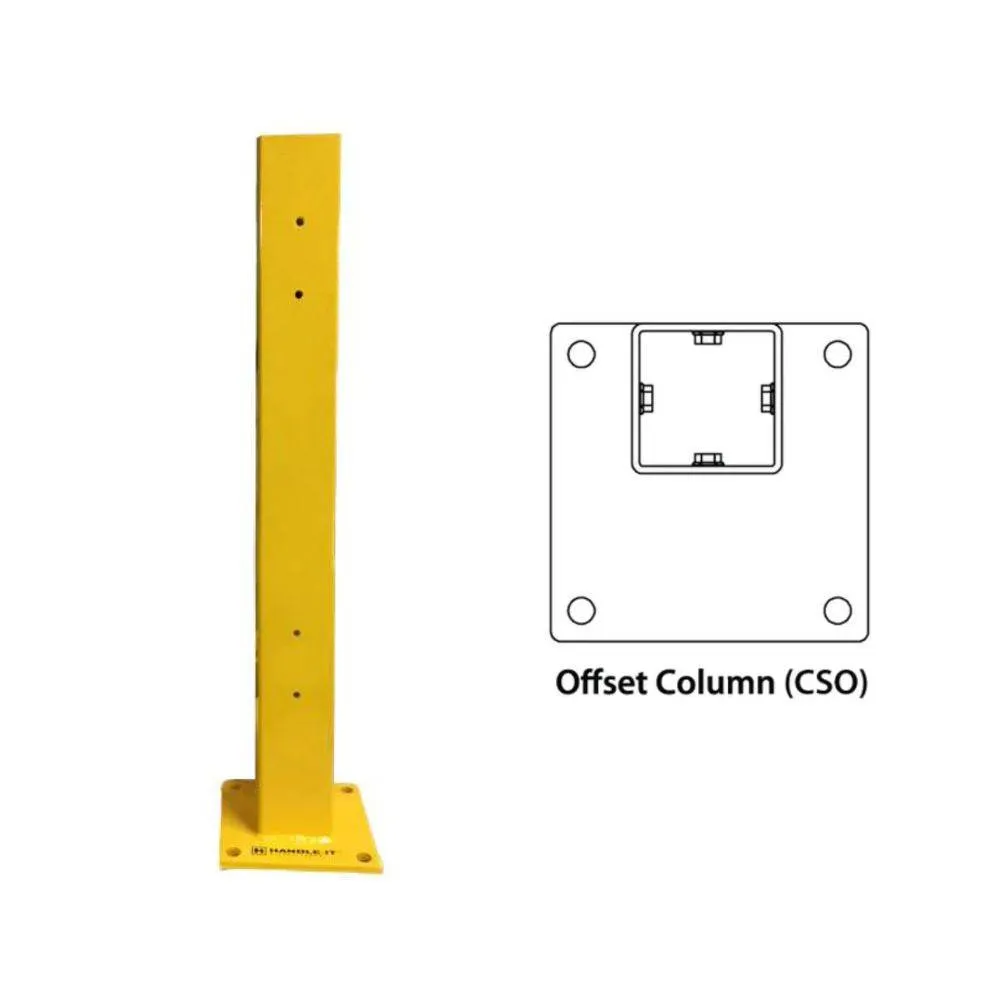

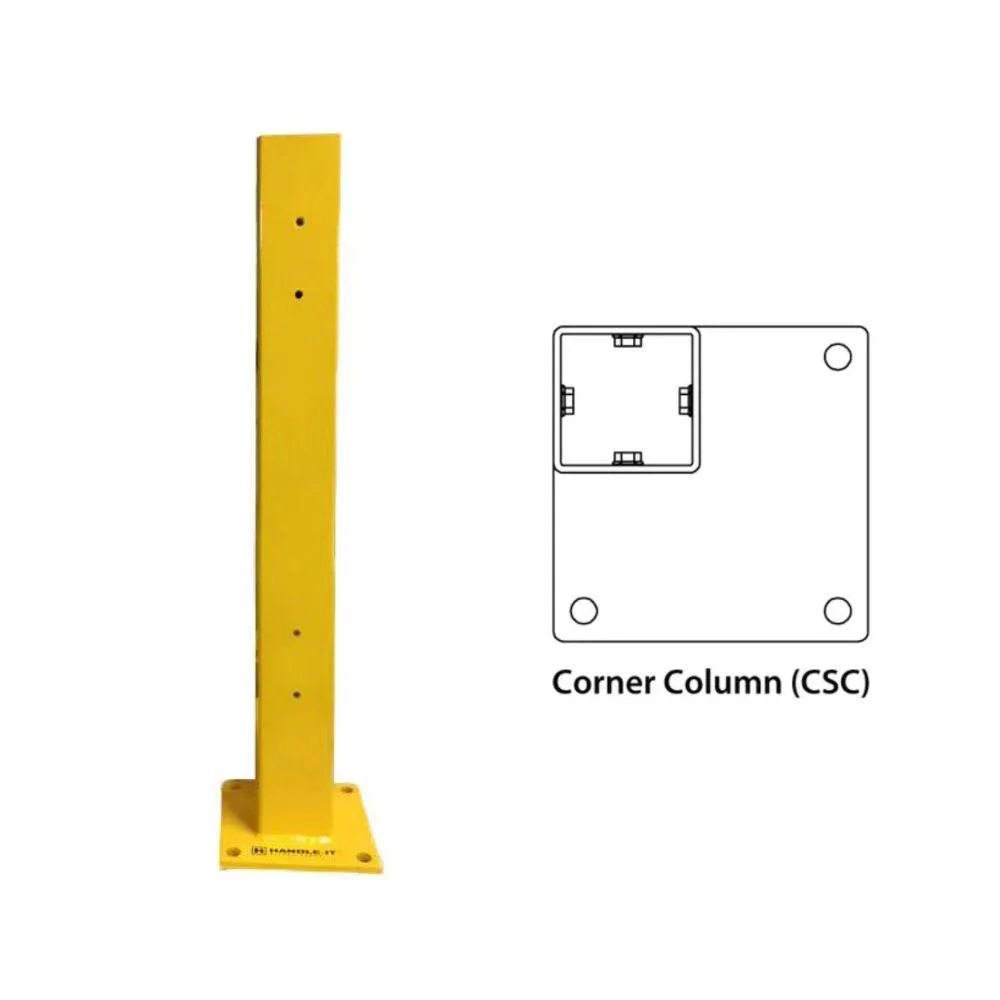

- Column is 4.75" x 4.75" steel square tube mounted on a 10" x 10" base plate
- Product design allows for faster installation cutting down on labor costs
- Drilled & pre-tapped posts have mounting on all four sides

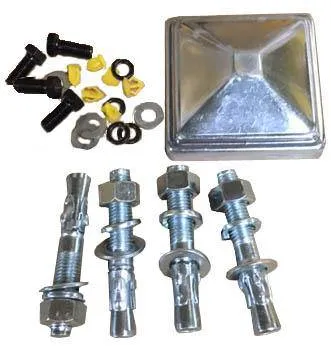

- All anchors and hardware/caps included
- In-stock items can ship within 24 hours.
Areas for Installation
- Around in-plant offices and workstations
- Along pedestrian walkways
- To protect sensitive machines
- At the end of rack aisles
- Adjacent to conveyor lines
- Around mezzanines
|
Handle-It Guard Rail Dimensions
|
|||
|
Rail Length
|
Center to Center of Columns
|
Outside to Outside of Base Plates
|
|
|
10 Ft. Rail
|
115"
|
120"
|
130"
|
|
9 Ft. Rail
|
103"
|
108"
|
118"
|
|
8 Ft. Rail
|
91" |
96"
|
106" |
|
7 Ft. Rail
|
79" | 84" |
94"
|
|
6 Ft. Rail
|
67" |
72"
|
82" |
|
5 Ft. Rail
|
55" | 60" | 70" |
|
4 Ft. Rail
|
43" | 48" | 58" |
|
3 Ft. Rail
|
31" | 36" |
46" |
| 2 Ft. Rail | 19" | 24" | 34" |
|

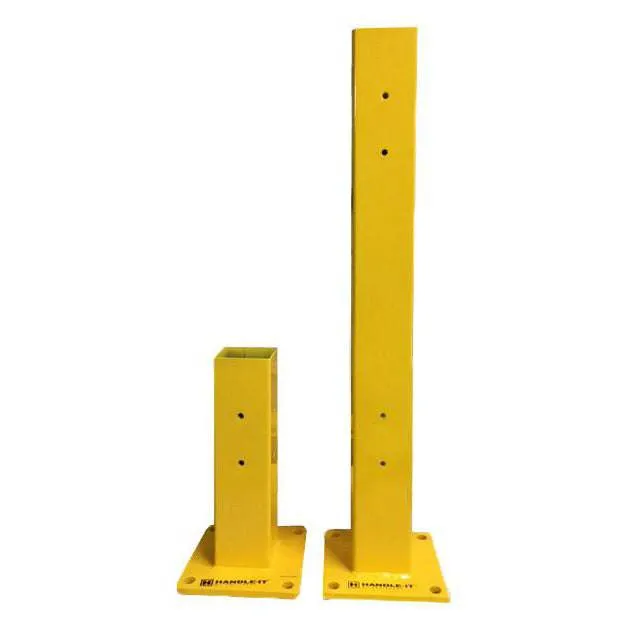

Column Height
|
|
|

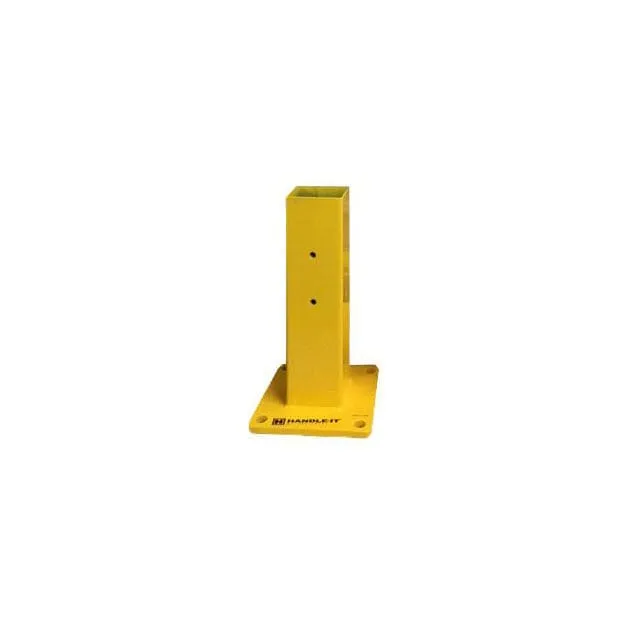

Single Rail Post
|
18.5"
|
|

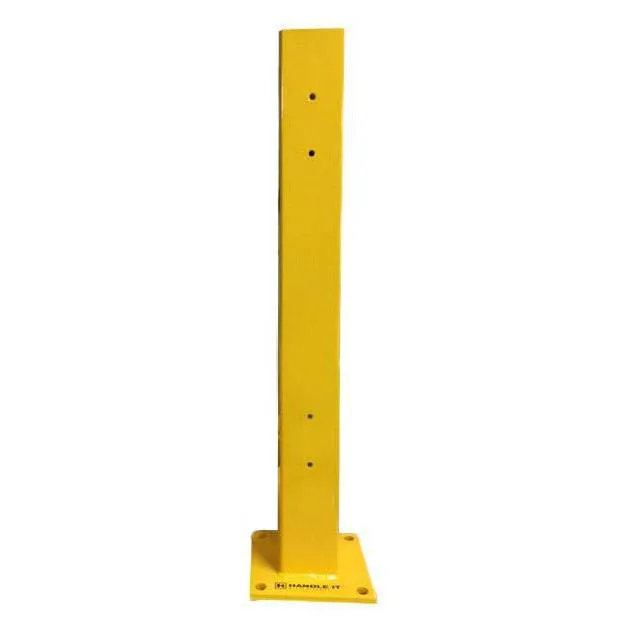

Double Rail Post
|
43"
|
| Brand | Handle-It |
| Finish | Handle-It Yellow visibility powder coat |
| Miscellaneous | Custom sizes available |
